Description

15KV-27KV Polymer Fuse Cutout

Technical Specification:

Rated voltage:27kV

Rated current:100A/200A

Breaking current:8000A/10000A

Impulse voltage(BIL):125kV

Power frequency withstand voltage:50kV

Creepage Distance:480mm

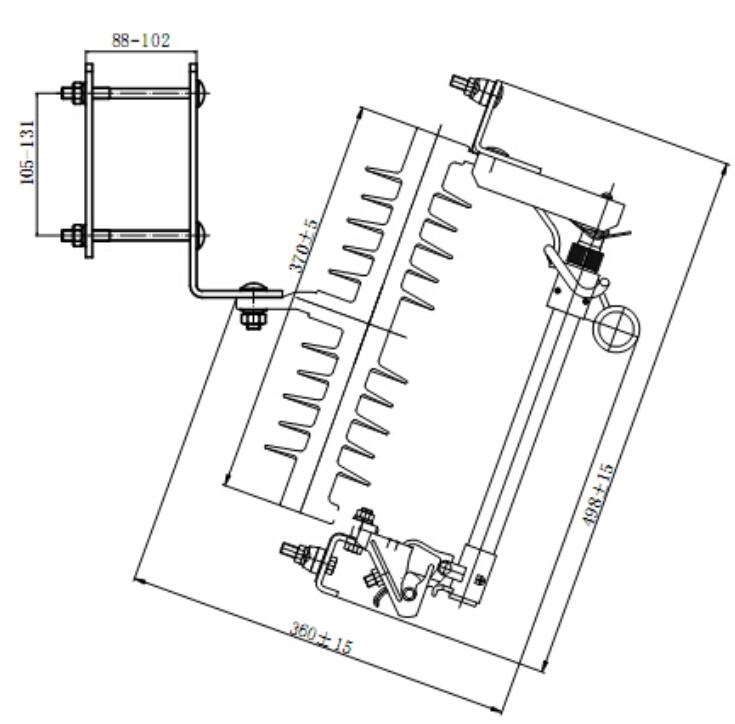

Outline Drawing:
