Description

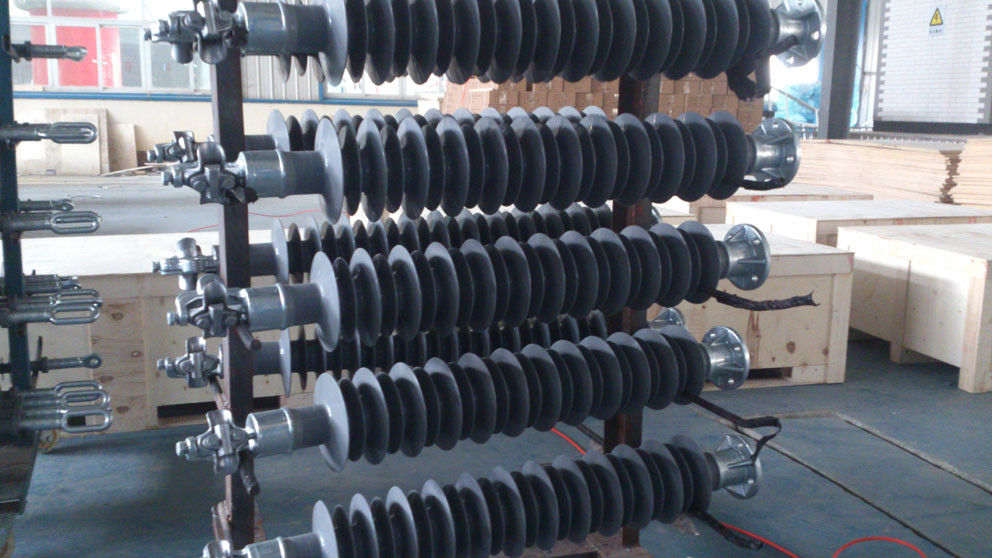

FZSW High Voltage Polymer Post Insulator 15KV 24KV 33KV 36KV
Features
1. The silicone rubber housing taken shape by whole injection. It has good hydrophobicity, hydrophobicity migration and soil resistance, as well as excellent electrical insulation properties and aging resistance, which could prevent effectively those accidents of pollution flashover so as to ensure the safe running of high voltage transmission lines.
2. The modified ECR fiberglass reinforced epoxy resin rod is used as it has good resistance to high temperature, stess corrosion & acid attack, as well as fine damping action, high tensile strength (> 1200Mpa) and resistance to creep and fatigue failure, which effectively ensure the internal insulation quality and mechanical stength of insulators.
3. End fittings are crimped onto fiberglass rod with voice-operated displacement type crimper. The insulators with this crimping technique have high mechanical strength and small dispersion. Taking the most advanced automatic overall injection moulding technic and connection method of crimping for production and assembling, and the whole crimping procedure controlled by computer and the crimping result monitored by ultrasonic detector to assure each product is qualified.
Inspection before installation
Before dispatched, the goods will be performed routine test and smaple test comply with related standards. In case damage during the transportation, each one’s sheds and housing will be checked thoroughly. Superficial defects of an area greater than 25 mm² (the total defective area not to exceed 0.2% of the total insulator surface) or of depth greater than 1mm.
Packing
All composite insulators are packed in weatherproof containers in order to protect the products during land, air, and sea transportation. Several different grades of packaging can be offered depending on the mode of transport and the expected storage conditions. Each packing (wooden cases or crates) attached specification and certification of products.
Technical Specification
|
Product Details
