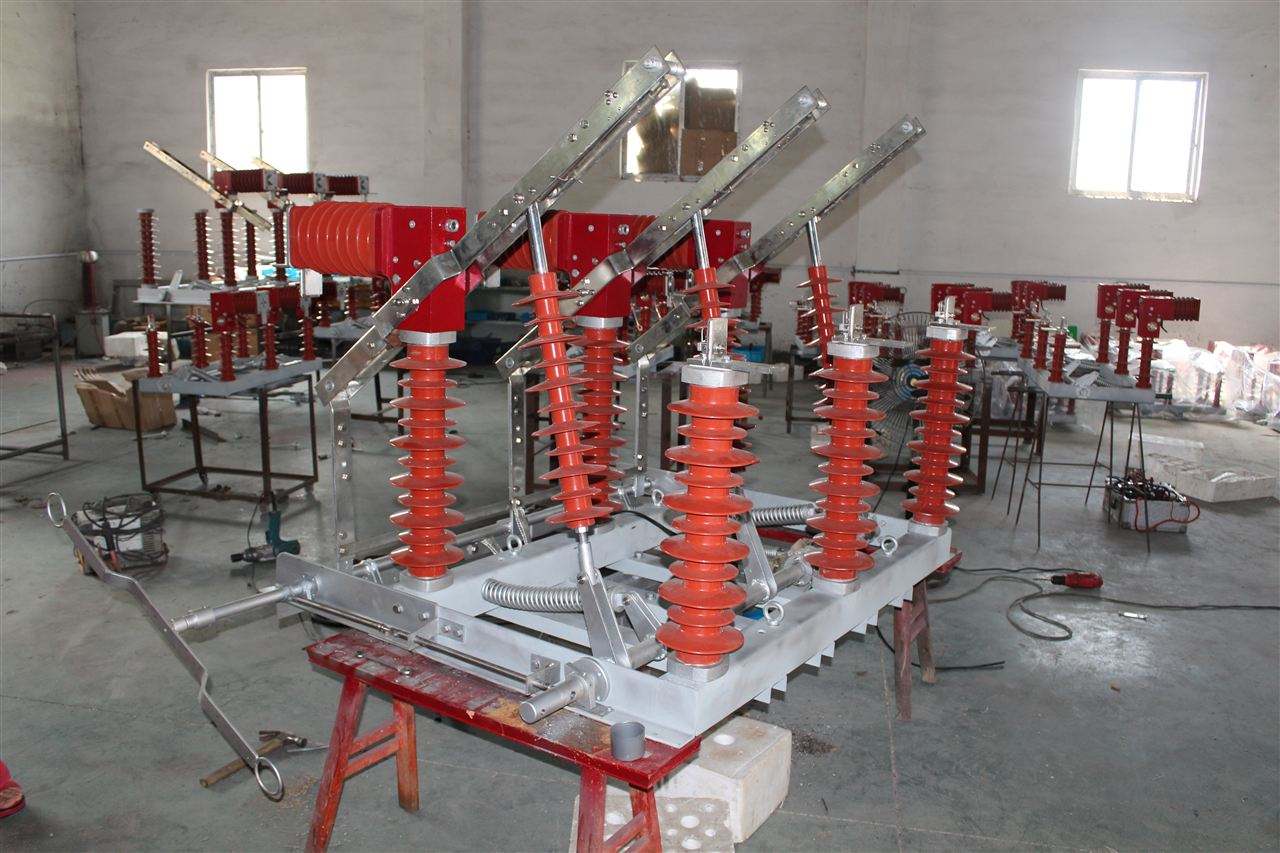

FZW32-12 FZW32-40.5 Outdoor High Voltage Load Break Switch

General Introduction

FZW32-12 (40.5) type outdoor high voltage isolating vacuum load switch is a new type of load switch which is the integration of mature experience of domestic existing load switch and advanced technology design of external. This load switch is composed of isolating switch, vacuum interrupter and operating mechanism and other parts. By using the principle of vacuum interrupter, with strong arcing ability, reliable performance, long service life, small volume, no explosion danger, no pollution etc advantage. The product can be used in transmission and distribution system of electric power, metallurgy, mine, chemical industry and other departments as control equipment, especially suitable for frequent operation place.

Working Conditions

Ambient temperature: upper limit +40℃, lower limit -30℃;

Days difference does not exceed 32K;

Altitude: 1000m and the following areas;

Wind pressure: no more than 700Pa (corresponding to the wind speed 34m/s);

Air pollution level: IV class

Earthquake intensity: do not exceed 8 degree;

Ice thickness: no more than 10mm.

Model&Meaning

Technical Specification

Outline&Drawing

Product Details
