Description
JDX-10 10kV Voltage Transformer Oil-immersed Voltage Transformer
General Introduction
This voltage transformer is single phase, oil-immersed product for indoors. It has
many merits, such as big capability, high precision, etc. There are three secondary
windings, they are used as measurement, monitoring, zero-sequence protection. Themeasuring and monitoring windings are separated. Fully exert their functions. Notintefere each other.
Model and Meaning
Structure Features
The voltage transformer is single phase and oil immersed structure. The iron core is
piled up of the silicon steel sheet. The body is fixuped bellow the core clip. The
winding is reeled with concentric type. There are different insulted levels of two high
voltage ends. The terminal of “A”, high voltage insulation, is led out from porcelain
bushing. The terminal of “N”, beding earthed, is led out from small porcelain sheath.

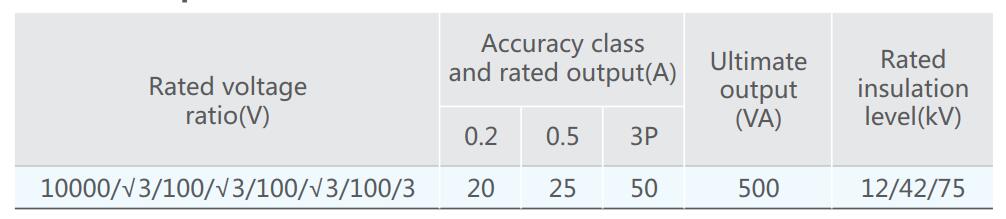

Technical Specification
Outline and Mounting Dimensions
