JDZC 6kV Voltage Transformer 10kV Voltage Transformer

General Introduction
JDZC-6,10 type voltage transformer is the indoor device of epoxy resin cast insulation,
applied to electric measurement and electric protection in the electric system of rated
frequency 50Hz and rated voltage 10kV.

Structure Features
This transformer is the type of full insulation, its primary winding two terminals that
are checked according to full insulation level, distributd on both sides of casting
body top. It is mainly made up of three part; iron core, secondary winding and
primary winding which are all encapsulated in the epoxy resin casting body, featured
with stable electric performance and perfect damp proof property.

Model and Meaning

Working Conditions
Equipment category: Indoor
Environmental temperature: Max temperature +40℃, Min temperature -5℃
There shall not be stains and corrosive or explosive mediums that seriously affect
the insulation of transformer in the air.

Technical Specification

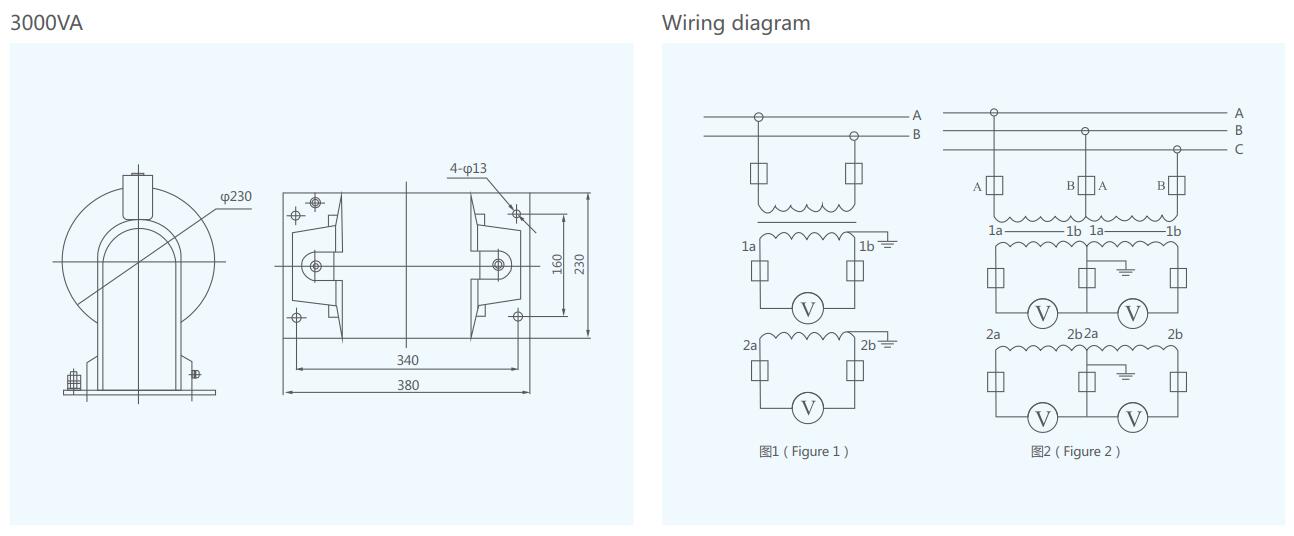

Outline and Mounting Dimensions
