Description
LZZBJ18-10 10kV Indoor Current Transformer Cast Resin Current Transformer
General Introduction
This series of current transformers is epoxy resin vacuum casting fully-enclosed
support-type, they adopt advanced materials and technology, they are used for
current, power measurement and relay protection indoors alternate power system
with frequency 50-60Hz, rated voltage 10kV and below. This series of products has
the newest series super precision, super bynamic and thermal stability, large-
capacity, number of secondary winding is 2-4, can be arbitrarily composed by
different needs.
Technical Specification
Rated insulation level: 10kV:12/42/75kV; 20kV:24/65/125kV
Power factor of load: cosφ=0.8(lagging)
Rated secondary current: 5A(or 2A,1A)
Wiring Diagram
Single Ratio Wiring Diagram
LZZBJ18-10/150b/2 type(equivalent to AS12/150b/2S)
LZZBJ18-10/185h/2 type(equivalent to AS12/185h/2S)
LZZBJ18-10/150b/4 type(equivalent to AS12/150b/4S)

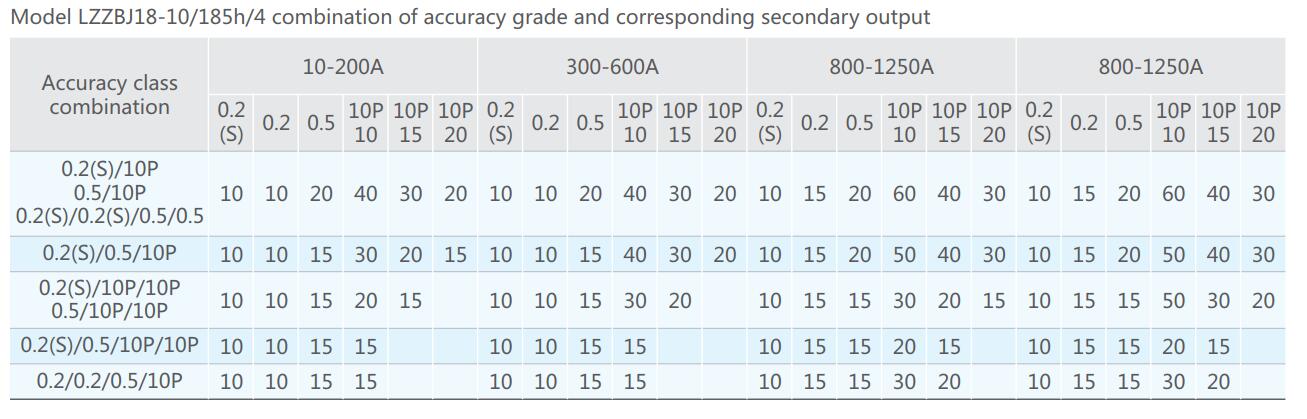

LZZBJ18-10/185h/4 type(equivalent to AS12/185h/4S)
LZZBJ18-10 Single-winding mutual inductance electrical
